Features

The humidity controller is composed of a highly reliable microcontroller chip, high-precision humidity sensor, and intelligent software control technology.

Technical Specifications

Model：WSD-P

Power Supply：220VAC (50-60Hz)

Power Consumption：≤ 1.5VA

Control Output：5A, 250VAC (resistive load)

Display：LED display (with adjustment dial)

Temperature Setting：0-100°C (adjustable, with display)

Humidity Setting：88% RH; differential: 1-9% RH

Humidity Resolution：±1% RH

Humidity Accuracy：±5% RH

Operating Mode：Temperature: heating/cooling adjustable; Humidity: dehumidification

Ambient Temperature：-15°C to 55°C

Ambient Humidity：15% to 95% RH

Mechanical Life：> 3,000,000 cycles

Weight & Dimensions： Approx. 250g; 48×48×72mm

Installation Method：Panel mount; cutout size: 45×45mm

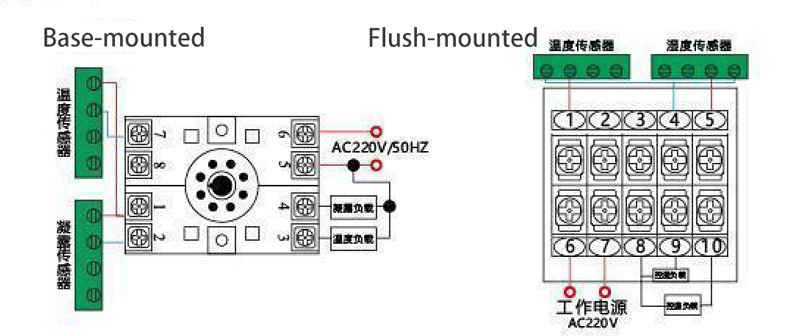

Installation Methods
