Main Function

It includes one condensation control unit and one temperature control unit. It enables real‑time control of ambient temperature and humidity, automatically activates loads, ensures temperature meets operating standards, and effectively prevents condensation (heating‑type).

Technical Characteristics

Condensation Control Threshold：88% RH ± 5% RH (at 20°C)

Response Time：Typical ≤ 5 seconds

Temperature Control Range：Factory‑set to user requirements (-30 ~ 70°C)

Hysteresis：4 ~ 6°C

Load Control：Manual / Automatic switchable

Output：AC220V / 5A (resistive load, at rated operating voltage)

Dimensions：48 × 48 × 78 mm³

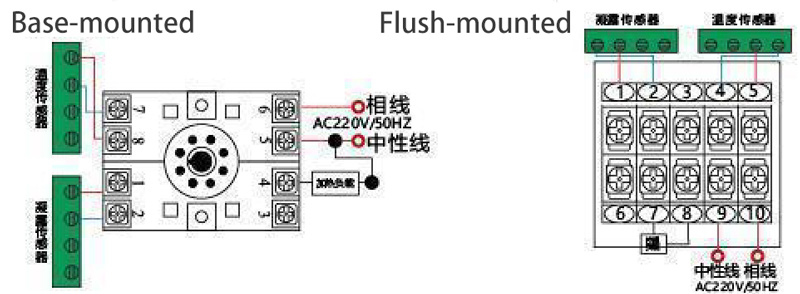

Installation Methods

Base‑mounted: Secure the 8‑pin relay socket to a 35 mm DIN rail, or mount it directly to the panel via mounting holes.

Flush‑mounted: Cut a 45+0.5 × 45+0.5 mm² hole in the panel, then fasten the controller using the mounting bracket.

Installation Methods
