Main Function

Single-channel temperature control, adjusting the temperature to the set working value. Available in heating-type and cooling-type versions.

Technical Specifications

Temperature Control Range：-30 ~ 70°C

Accuracy：±1°C

Temperature Control Point：User adjustable; hysteresis 4–6°C

Output：Rated resistive load: AC220V/3A (at rated operating voltage)

Dimensions：48 × 48 × 78 mm³

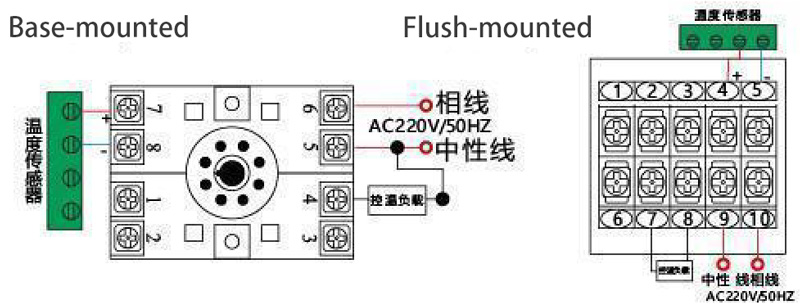

Installation Methods

Base Mounting:

Secure the 8-pin relay socket to a 35mm DIN rail, or directly mount it to the installation plate via mounting holes.

Flush Mounting:

Cut a hole of 45+0.5 × 45+0.5 mm² in the installation panel, then fasten the controller to the panel using the mounting bracket.
