Product Overview

This product is suitable for indoor AC 50Hz systems with rated voltages of 3.6, 7.2, and 12kV as short-circuit protection for power capacitor banks. Under specified operating conditions, the fuse can reliably interrupt any fault current between its melting current and rated breaking current.

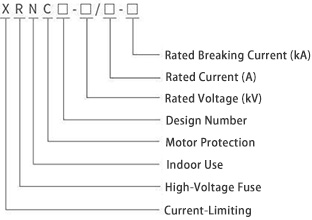

Model Definition

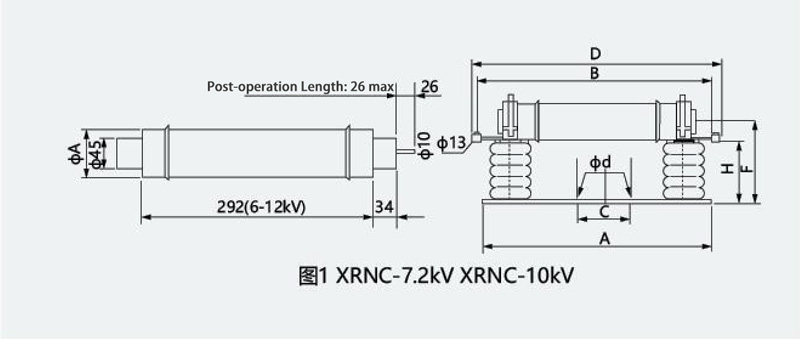

Outline and Installation Dimensions

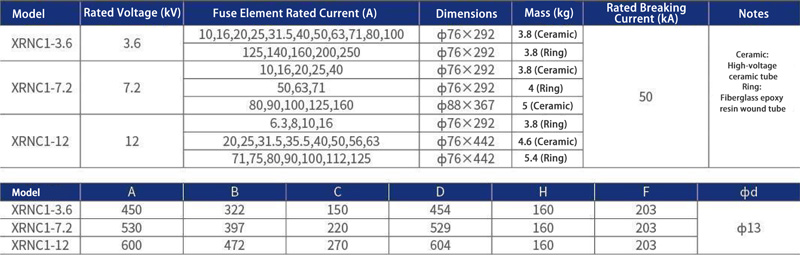

Technical Parameters

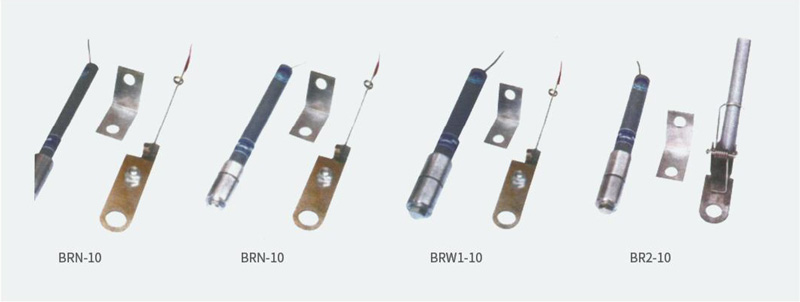

BRN and BRW-10, BR1-10 Type Fuses

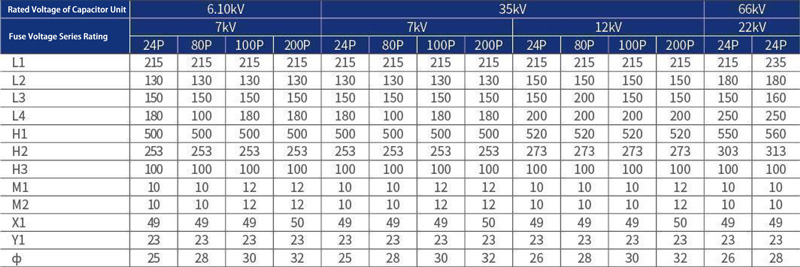

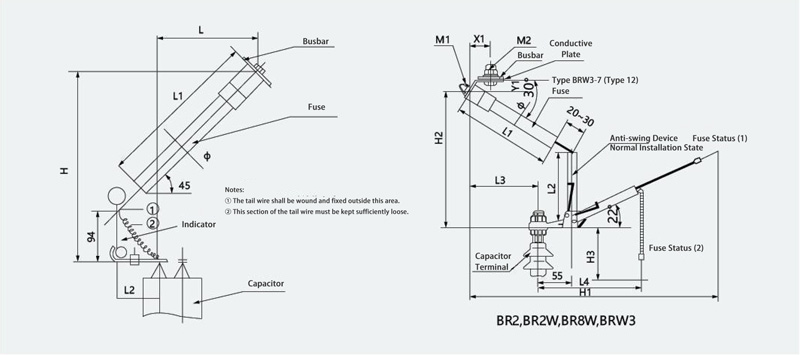

Data Sheet for Installation Drawing of High-Voltage Fuses for Individual Protection of Shunt Power Capacitors
