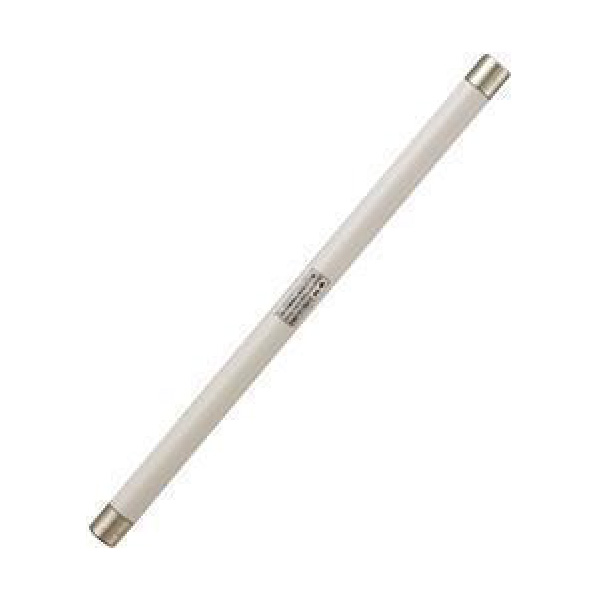

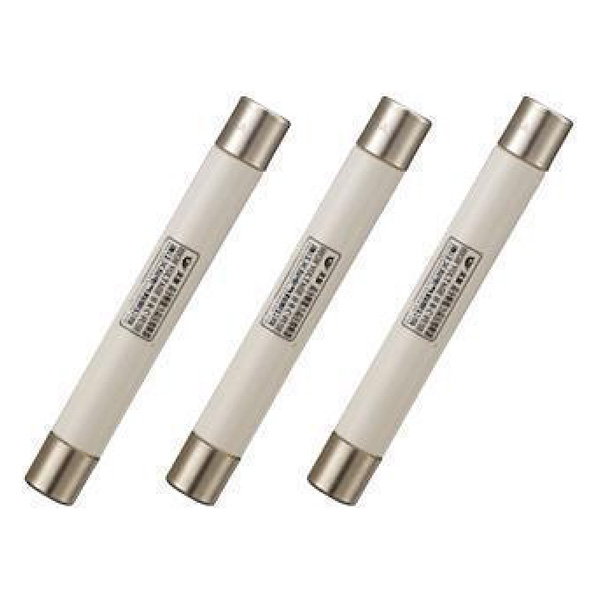

Product Overview

This product is suitable for indoor AC 50Hz systems with a rated voltage of 3.6–40.5kV, providing overload and short-circuit protection for voltage transformers. (It has passed the type test by the National Center for Quality Supervision and Testing of High-Voltage Electrical Apparatus, and complies with standards GB 15166.2 and IEC 60282-1.)

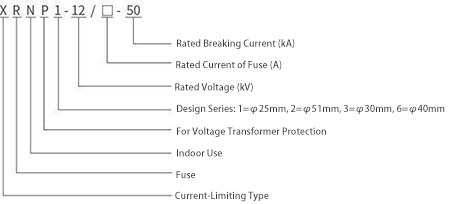

Model Designation Explanation

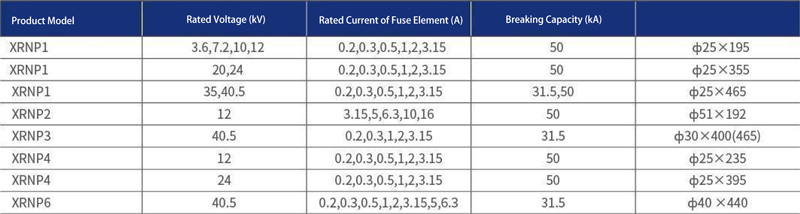

Basic Technical Parameters of Fuses

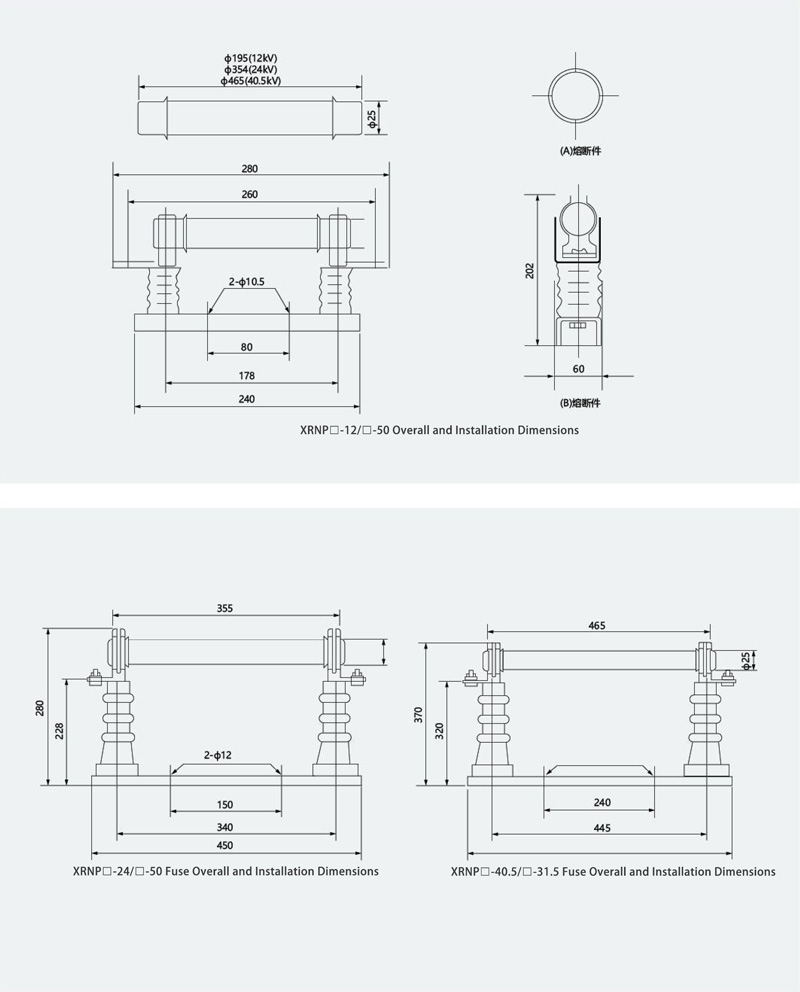

Overall and Installation Dimensions
