Description

The DSN-BM indoor electromagnetic lock is an interlocking device designed to prevent incorrect electrical operations in high-voltage switchgear. It is primarily used on high-voltage switch cabinet doors and other locations requiring safety interlocking to enforce forced locking, preventing personnel from accidentally entering live compartments or forcing the lock open with keys during misoperation. It is an indispensable interlocking device for power generation and supply departments.

Product Models: DSN-BMZ, DSN-BMY

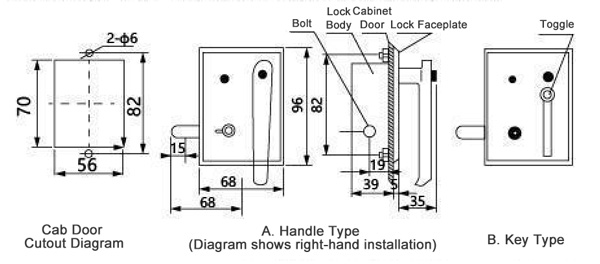

Cutout Dimensions: 56mm × 70mm

Operating Voltage: AC220V, DC220V, DC110V (universal power supply)

Bolt Stroke: 15mm

Installation Dimensions: φ6 × 82mm

Installation Orientation:

DSN-BMZ: Left-hand installation

DSN-BMY: Right-hand installation
