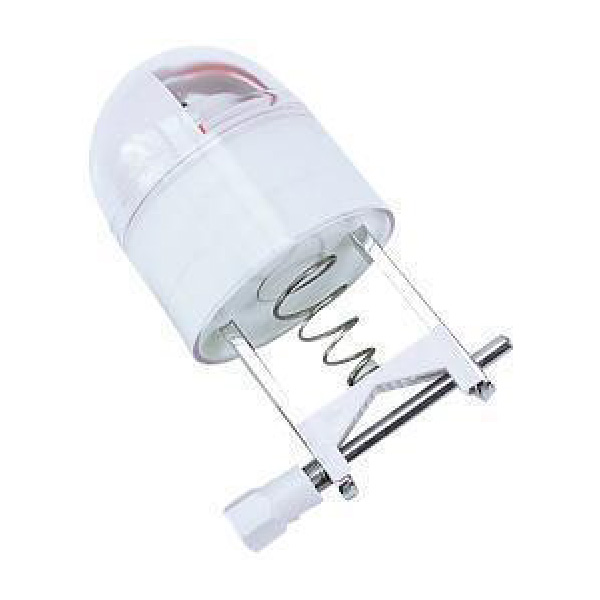

Product Features

Made of high-strength, high-transparency aerospace material through one-time molding and treated with nanotechnology, offering better transparency, anti-fouling, anti-aging properties, maintenance-free operation, and a long service life.

1.High-performance lithium battery with a service life of more than 8 years.

2.Circuit board composed of imported components such as dedicated chips and microcontrollers.

3.Housing made of aerospace and nanomaterials.

4.Nickel-plated clamping structure with high magnetic permeability, allowing live-line installation.

5.Red fluorescent paint for high visibility, providing clear indication under night-time lighting.

6.Indicator rotor that does not fade under long-term outdoor UV exposure.

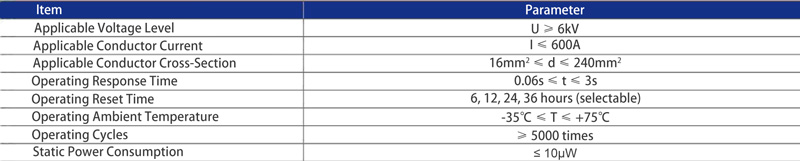

Technical Parameters

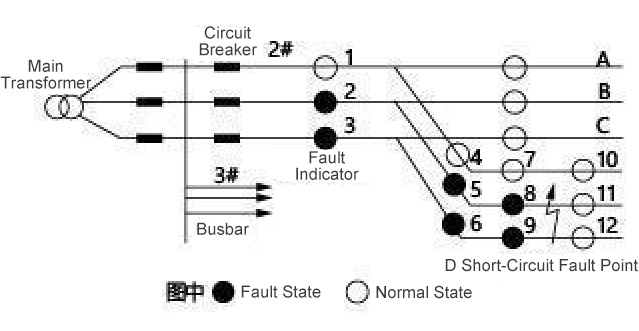

Short-Circuit Detection Principle: Based on the characteristics of short-circuit faults, the positive current surge at the moment of short-circuit and subsequent protection action/power outage are used as the trigger conditions. Below is the fault indication schematic for determining short-circuit faults:

Fault Judgment Logic

If indicators No. 2, 5, and 8 on Phase B of Line 2, as well as indicators No. 3, 6, and 9 on Phase C of Line 2 flip to red, while indicators No. 11 and 12 remain white, a short-circuit fault can be identified at the outlet point.
