Main Function

It includes one condensation control unit and one temperature control unit. It enables real-time control of ambient temperature and humidity, automatically activates loads, ensures temperature meets operating standards, and effectively prevents condensation. It is available in both heating-type and cooling-type versions.

Technical Characteristics

Condensation Control Threshold：88% RH ± 5% RH (at 20°C)

Response Time：Typical ≤ 5 seconds

Temperature Control Threshold：User adjustable

Hysteresis：4 ~ 6°C

Output：AC220V / 3A × 2 (resistive load, at rated operating voltage)

Dimensions：48 × 48 × 78 mm³

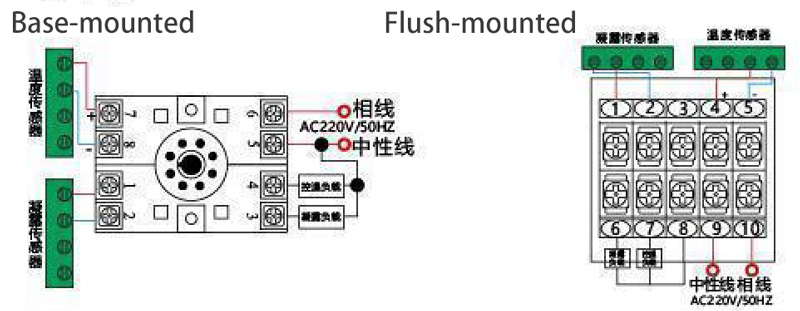

Installation Methods

Base-mounted: Secure the 8-pin relay socket to a 35 mm DIN rail, or mount it directly to the installation plate via mounting holes.

Flush-mounted: Cut a 45+0.5 × 45+0.5 mm² hole in the installation panel, then fasten the controller to the panel using the mounting bracket.

Installation Methods
