Main Function

Single-channel temperature control to adjust the temperature to the set operating value. Available in heating-type and cooling-type versions.

Technical Characteristics

Temperature Control Range：Factory-set to user requirements (-10~110℃)

Hysteresis：±5℃

Load Control ：Manual / Automatic switchable

Output：AC220V / 3A (resistive load, at rated operating voltage)

Dimensions：48×48×78mm³

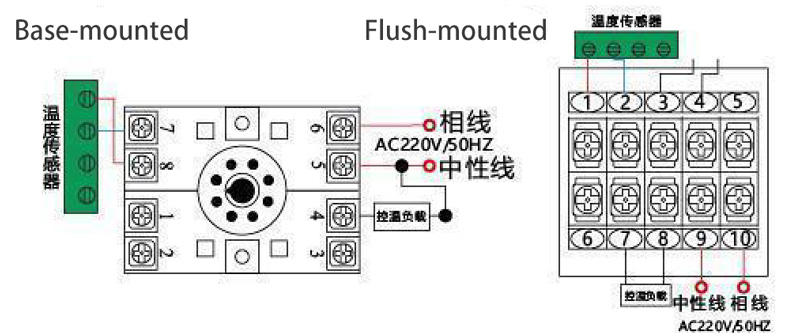

Installation Methods

Base-mounted: Secure the 8-pin relay socket to a 35 mm DIN rail, or mount it directly to the installation plate via mounting holes.

Flush-mounted: Cut a 45+0.5 × 45+0.5 mm² hole in the installation panel, then fasten the controller to the panel using the mounting bracket.

Installation Methods
