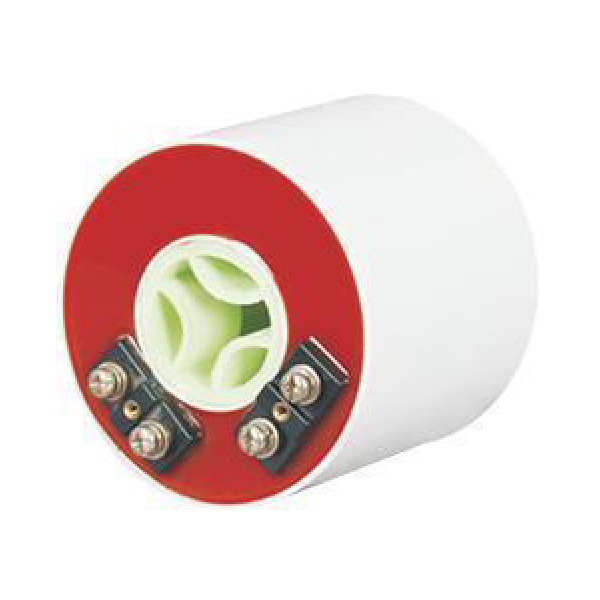

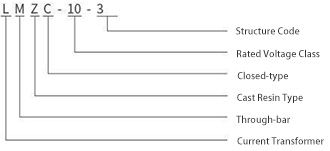

Model Code Explanation

Technical Parameters

1. Dual-Winding Current Transformer

2. Rated frequency: 50Hz or 60Hz;

3. Rated secondary current: 5A or 1A;

4. Rated short-time thermal current: 40kA, 2s;

5. Rated continuous thermal current: 1200%In;

6. Load power factor: cosφ = 0.8 (lagging);

7. Instrument security factor (measuring core): FS < 10;

8. Accuracy limit factor (protective core): 10P10, 10P15, 10P20, etc.

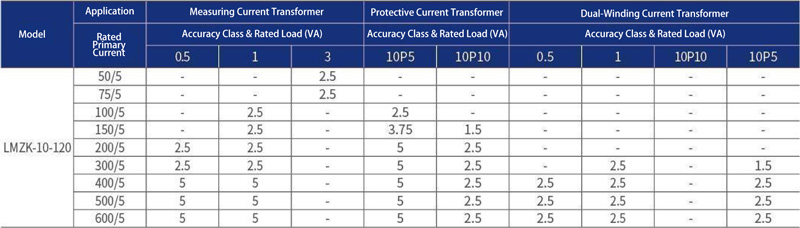

Technical Parameter Table

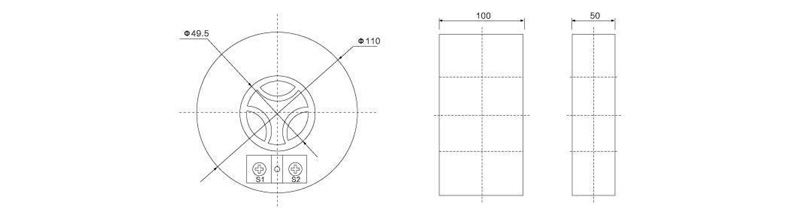

Outline and Installation Dimensions
