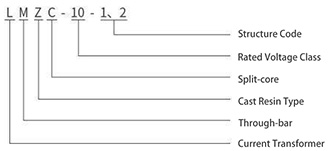

Model Code Explanation

Technical Parameters

1. Load power factor: cosφ = 0.8 (lagging);

2. Rated secondary current: 5A or 1A;

3. Rated frequency: 50Hz or 60Hz;

4. Pollution level: Class II;

5. Ambient temperature: minimum -5°C, maximum 40°C, daily average temperature not exceeding 30°C;

6. Altitude: ≤ 1000 meters;

7. Product standards: GB/T 20840.1, GB/T 20840.2.

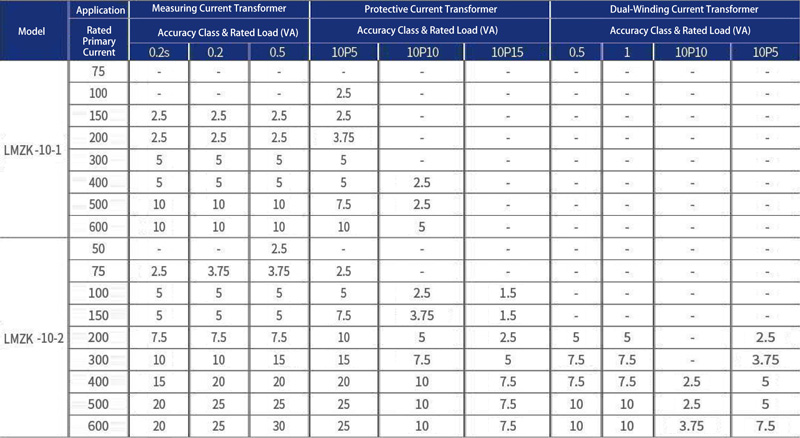

Technical Parameter Table

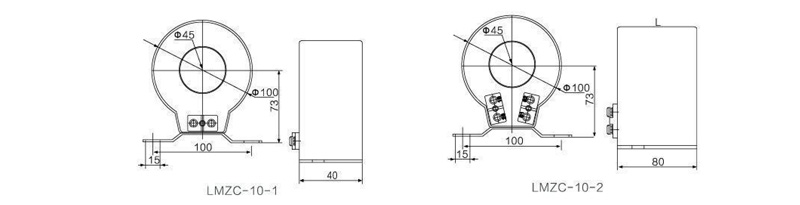

Outline and Installation Dimensions
