Scope of Application

The JXF2-1 series distribution box is an assembled power distribution device configured according to component models, specifications, and quantities to realize various control functions. It is widely used in industrial and civil buildings, serving as power distribution, lighting distribution, and automation control in power systems with a rated voltage of 380V and below, and a frequency of 50Hz.

The JXF2-1 series features a fully enclosed structure, designed for surface or flush mounting on walls. The enclosure is made of cold-rolled steel plates bent and welded together, with a surface treated by electrostatic spraying, combining both aesthetics and protection. The enclosure and box body are equipped with grounding screws connected by multi-strand flexible wires for reliable grounding protection. The enclosure protection rating is IP30, and the product complies with standards such as GB7251-1 and IEC60439-1.

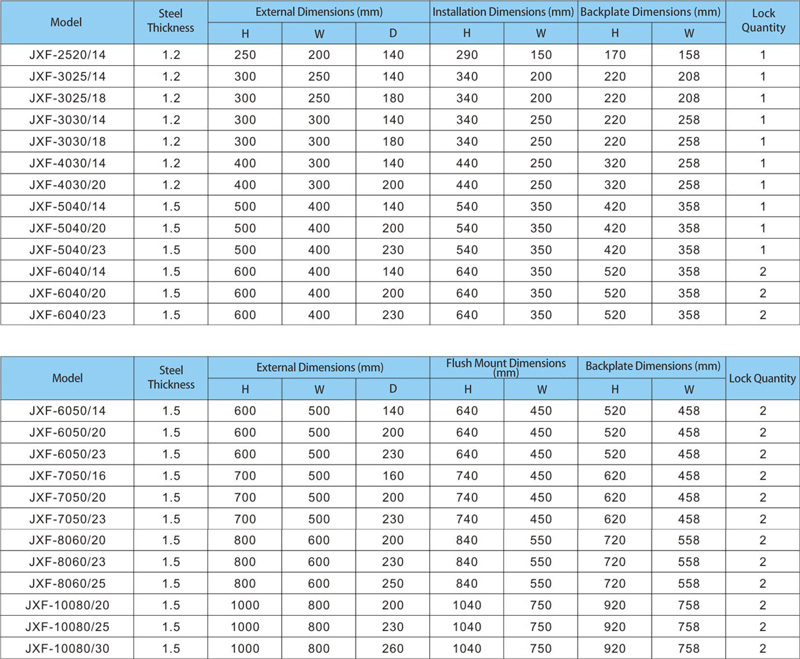

Dimensions
