Overview

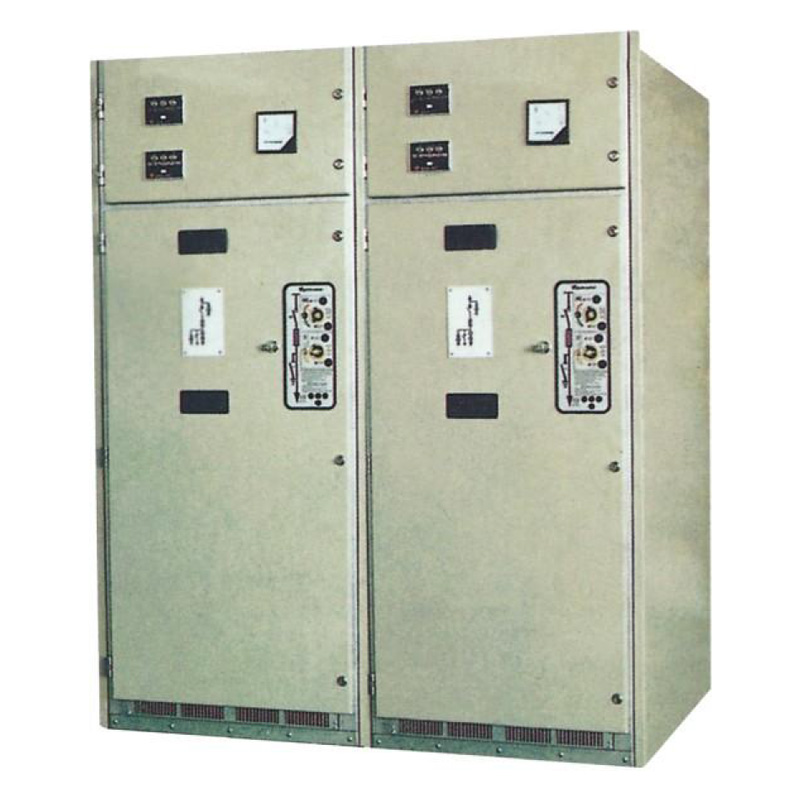

The HXGN17-12 box-type fixed metal-enclosed switchgear (commonly known as a Ring Main Unit, RMU) is an AC high-voltage complete switchgear with a rated voltage of 12 kV and a rated frequency of 50 Hz. It is primarily used in three-phase AC ring networks, terminal distribution networks, and industrial power equipment to receive and distribute electrical energy. It is also suitable for installation in compact/prefabricated substations.

Structural Features

1. Adopts an all-assembled structure, which is lightweight and aesthetically pleasing. It can be freely combined and installed for unlimited expansion.

2. Can be equipped with either the FN12-10 pressure-type load break switch/combination unit or the FZN25-12 vacuum load break switch/combination unit, both with identical installation dimensions. Features compact size, maintenance-free operation, a three-pole linked mechanism, and a visible isolating gap.

3. The FN12-10 load break switch and combination unit offer flexible installation options, including left/right side mounting, front mounting, or inverted mounting.

4. Supports both manual and motorized operation, with remote control capabilities.

5. Equipped with a complete and reliable mechanical linkage and interlocking device, fully satisfying the "five-prevention" safety requirements.

6. Features linked, protective insulating shutters that automatically cover live contacts to ensure personnel safety.

7. Designed for front-operation and maintenance, allowing reliable wall-mounted installation.

8. The front door is fitted with an observation window for clear viewing of the internal components' operating status.

9. Complies with the GB 3906 standard.

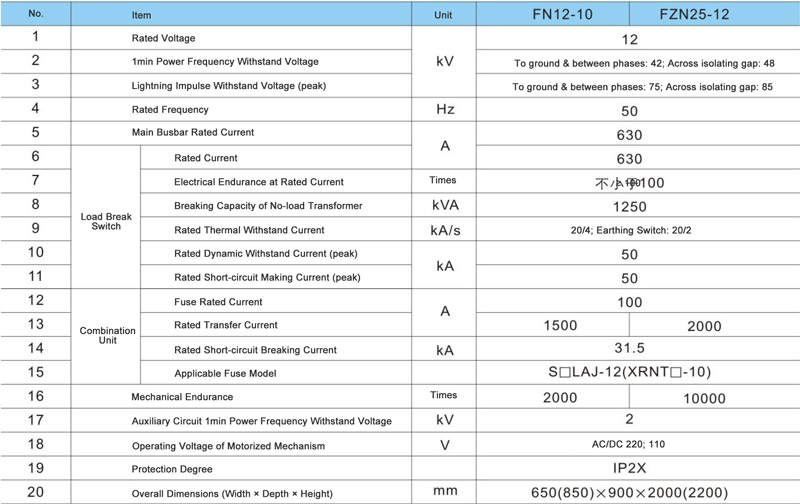

Main Technical Parameters

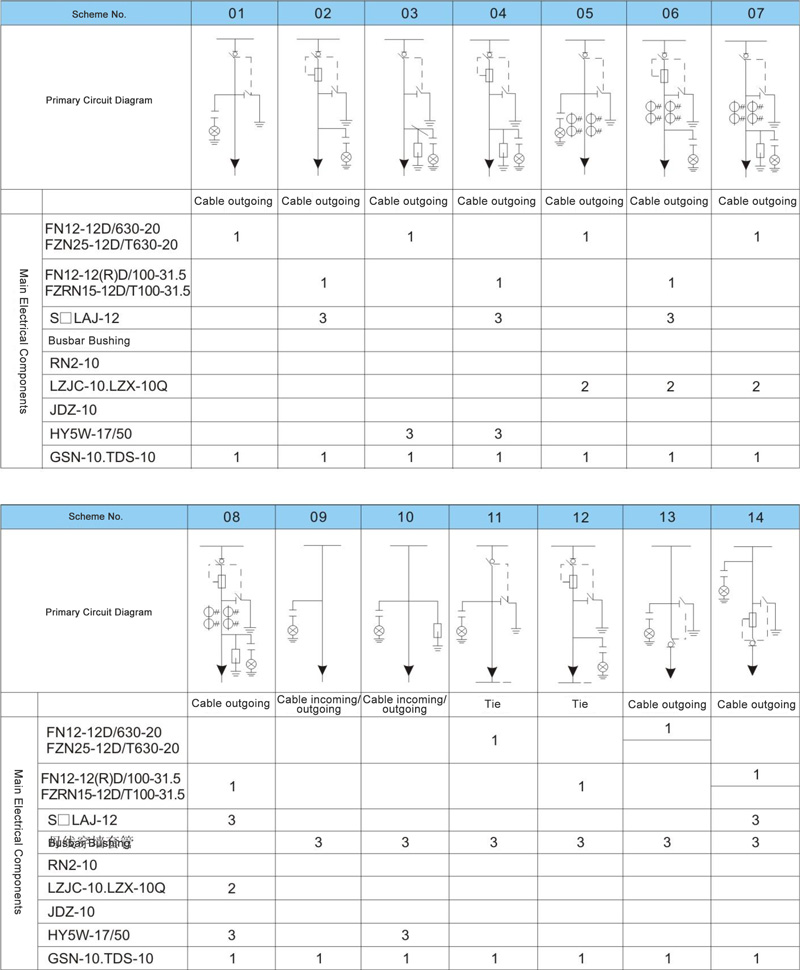

Main Circuit Schemes
