Ceneral

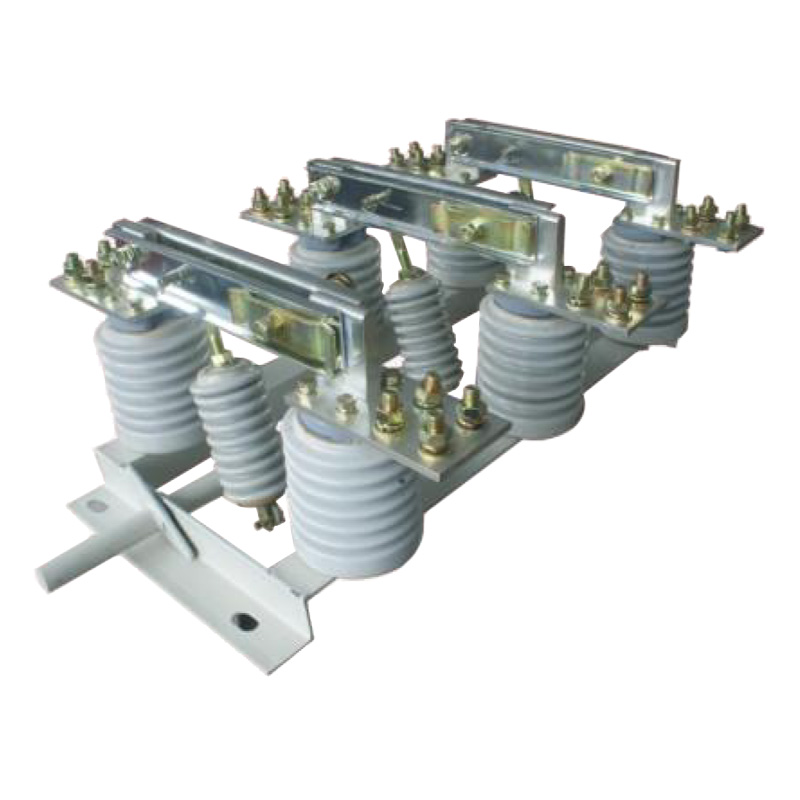

GN19-12(C) series indoor high voltage disconnecting switch is suitable for power system of rated voltage 12kV, AC 50Hz or 60Hz. It is equipped with CS6-Ⅰ manual operation mechanism for circuit switching on or off in the condition with voltage but without load, and it comes with electric charged indication device.

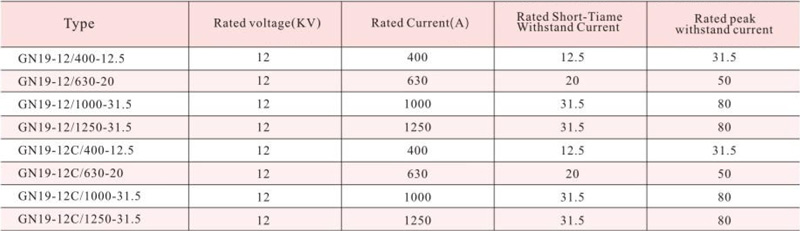

Main technical parameter

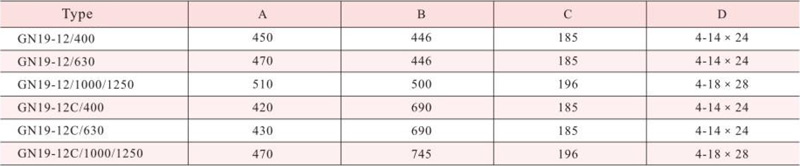

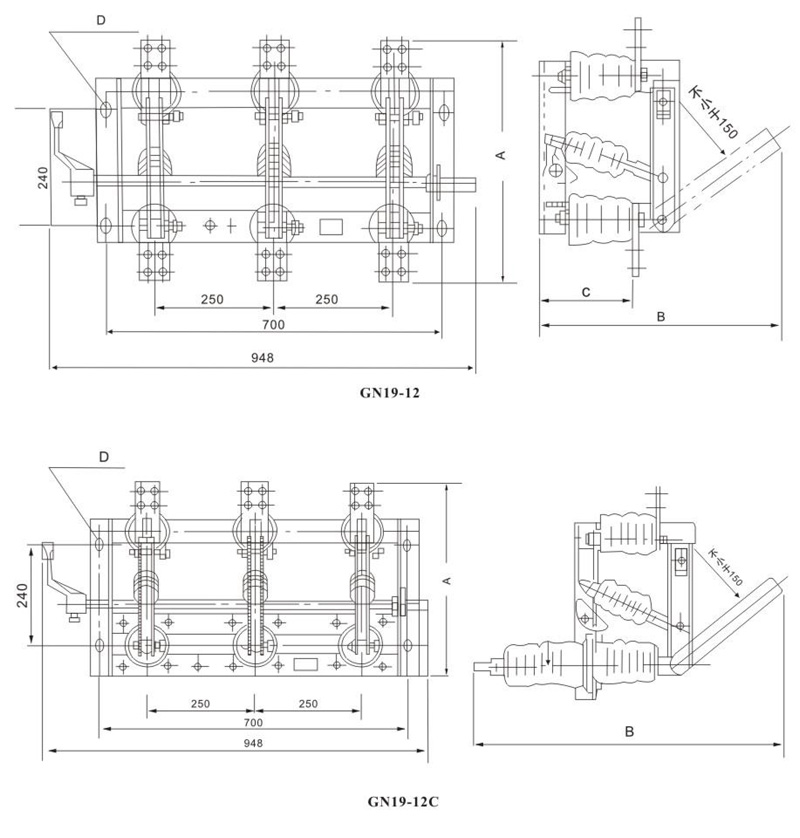

Outline mounting dimension
