Ceneral

GN27-35 series indoor high-voltage isolation switch for the rated voltage 35kv, three-phase AC 50Hz power system, is the use under no load conditions And conversion circuits connected purposes.

This product is equipped with the CS6-2-type Hand Actuator with D, with the hand with the CS6-1-type actuator.

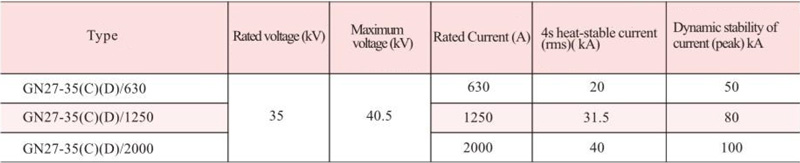

Main technical parameter

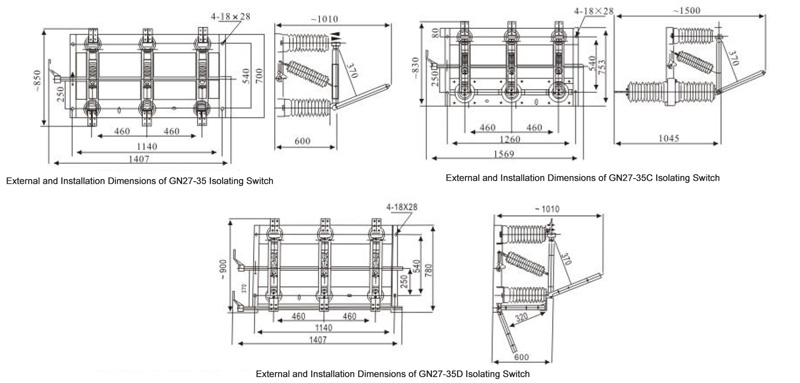

Outline mounting dimension
