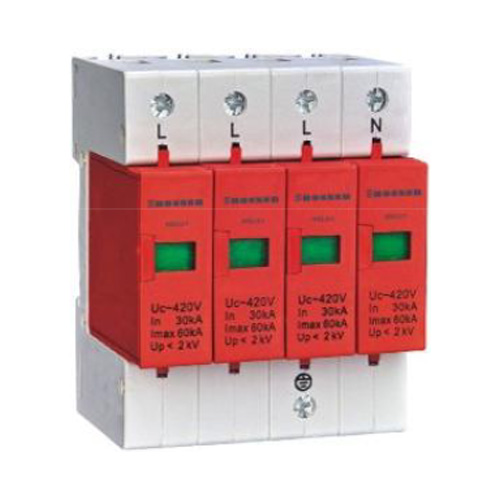

Application Scope

HSLU1 series surge protective devices (SPD) are designed for 50Hz AC power circuits with rated operating voltages of 220V and 380V, to limit transient overvoltages induced by lightning surge and switching operation.

Installed in locations with high overvoltage category, the SPD downgrades the overvoltage category by one level for protected electrical equipment and components. When deployed at load terminals, it further suppresses surge voltage to safeguard televisions, high-fidelity audio systems, air conditioners, computers and other appliances. It is widely applied in telecommunications, postal services, railway, computer system and construction sectors.

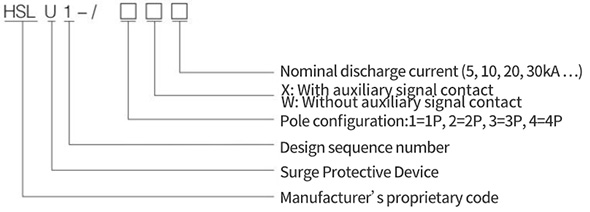

Model Code Definition

Performance & Technical Specifications

1.Low voltage limiting level and ultra-fast response time (25ns).

2.Status window with ageing indication: window changes from green to red upon component degradation.

3.Remote signal output available for connection to audible & visual alarm devices.

4.Faulty module replacement can be carried out without power cutoff; module extraction direction is shown in the assembly/disassembly drawing.

5.Anti-misplug design prevents incorrect installation of mismatched module ratings.

6.High surge current withstand: up to 100kA (8/20μs waveform).

7.In case of instantaneous high-current surge pulses, high-speed thermal fuse trips rapidly to isolate short-circuit source and avoid fire hazards.

8.Compliance standards: IEC61643‑1, GB10193, Ga173, Yd5078, Q/JBTY001‑2000.

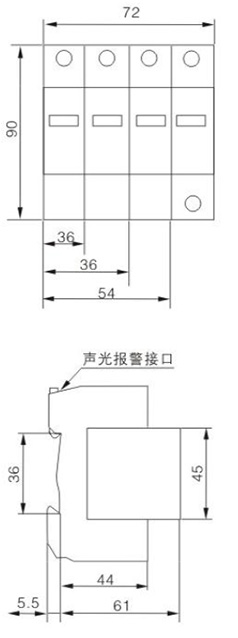

Overall & Mounting Dimensions

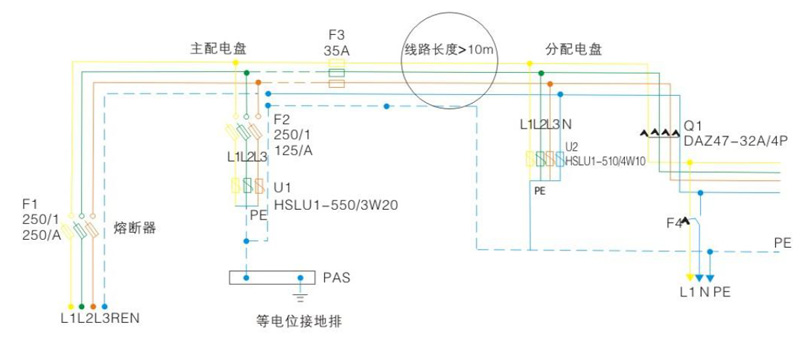

Typical Wiring Diagram
