Product Overview

The RN2 type indoor high-voltage current-limiting fuse is used for overload and short-circuit protection in power lines.

The so-called "current-limiting" refers to the fuse's ability to interrupt the short-circuit current before it reaches its peak value.

Fusing Characteristics

When the current through the fuse is 1.3 times the rated current, it shall not fuse within 1 hour.

When the current through the fuse is 2 times the rated current, it shall fuse within 1 hour.

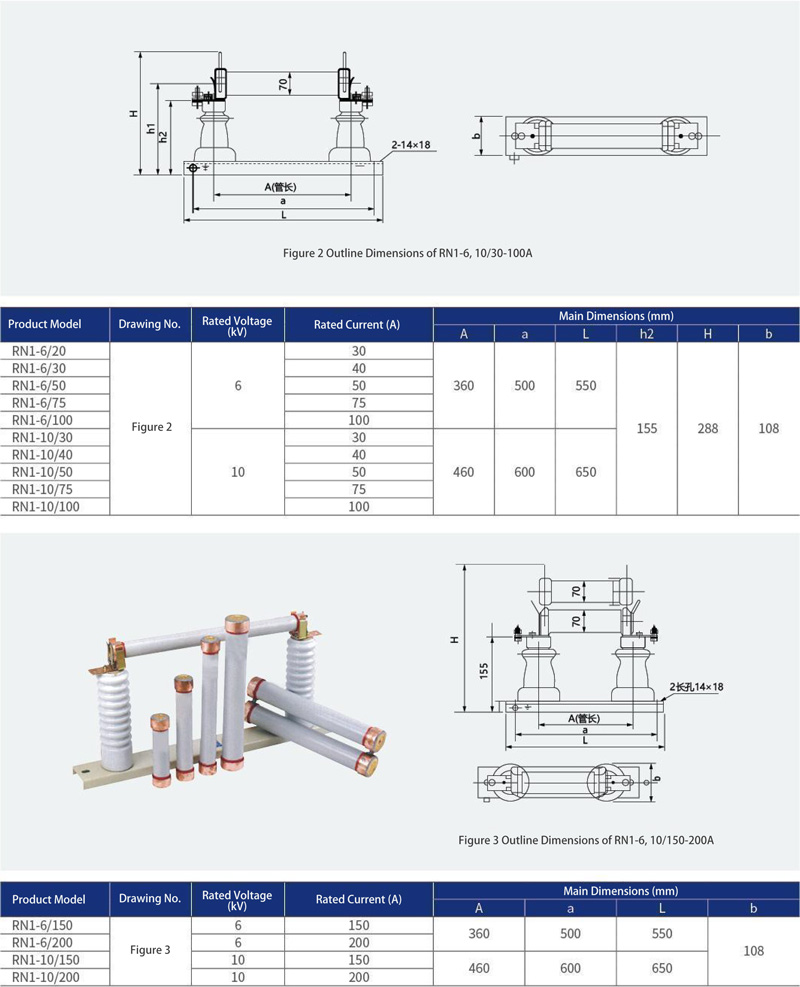

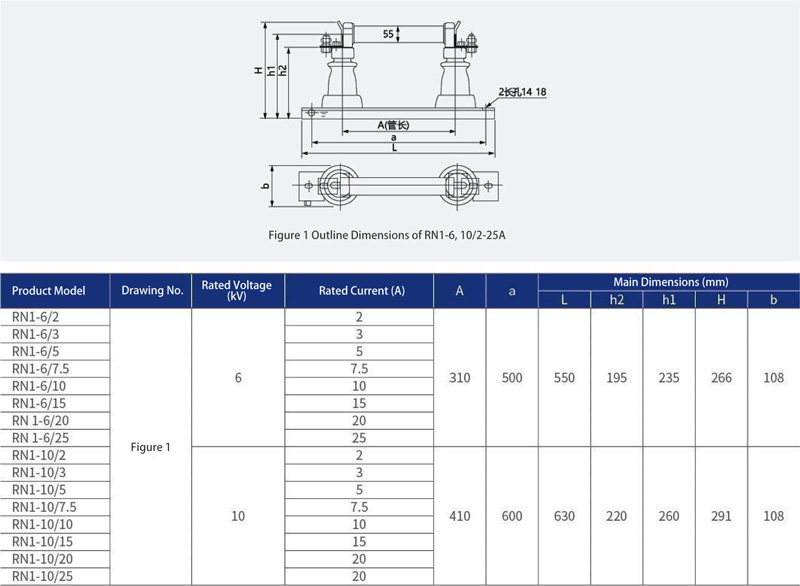

Outline Dimensions (mm) & Technical Parameters
