Product Overview

The RN2 type indoor high-voltage fuse is designed for short-circuit protection of voltage transformers, with a breaking capacity of 1000 MVA. It operates by limiting the line current to a minimum value to achieve instantaneous interruption during a short circuit. The fusing current within 1 minute shall be in the range of 0.6–1.8 A.

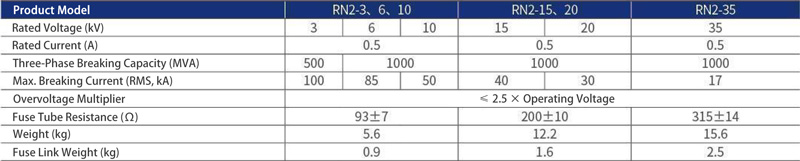

Technical Parameters

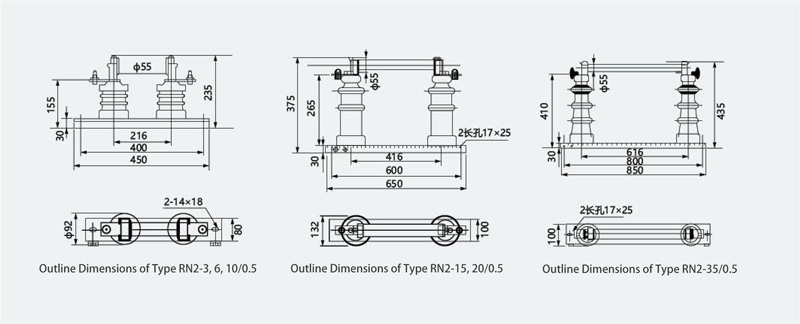

Outline and Installation Dimensions (mm)
