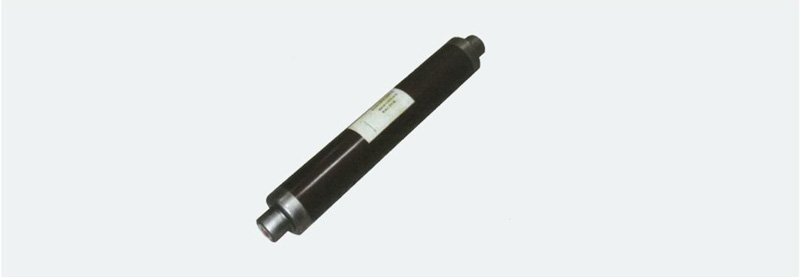

Product Overview

This product is suitable for indoor AC systems with a frequency of 50Hz and rated voltages of 3.6kV and 7.2kV. It can be used in combination with other protective devices such as load break switches and vacuum contactors, serving as a protection element against overload and short-circuit conditions for high-voltage motors and other power equipment.

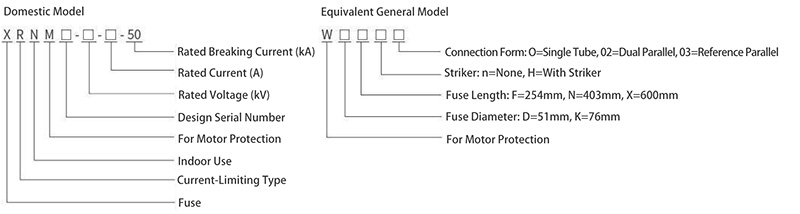

Model Designation Explanation

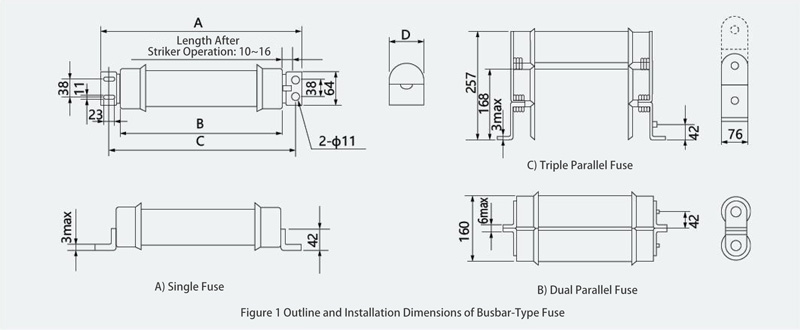

Outline and Installation Dimensions of Busbar-Type Fuse

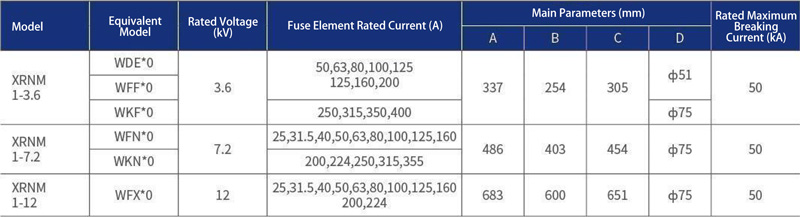

Basic Outline Parameters of Busbar-Type Fuses

Note: This model is also available in a plug-in configuration, in addition to the standard busbar-type design.

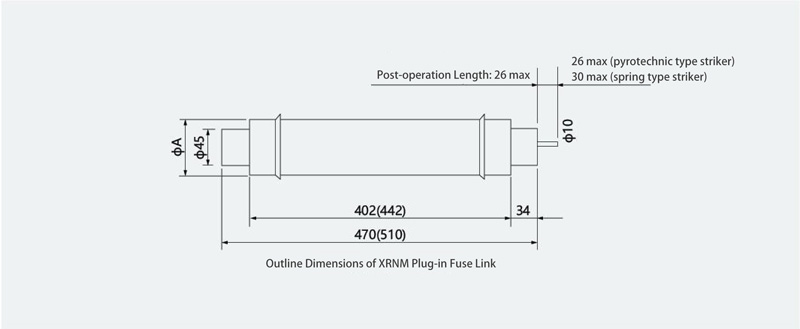

Outline and Installation Dimensions
