Product Applications

1.Connect single-core or three-core insulated cables to transformers, switchgear cabinets, branch boxes and other equipment via 630A separable connectors;

2.Suitable for both indoor and outdoor installation;

3.Maximum system voltage: 24kV;

4.Continuous rated current: 630A (900A overload for up to 8 hours);

5.Cable characteristics:

6.Polymer insulation (XLPE, ERP, etc.);

7.Copper or aluminum conductors;

8.With semi-conductive or metallic shielding;

9.Conductor size: 12kV: 25-500mm²; 24kV: 25-400mm².

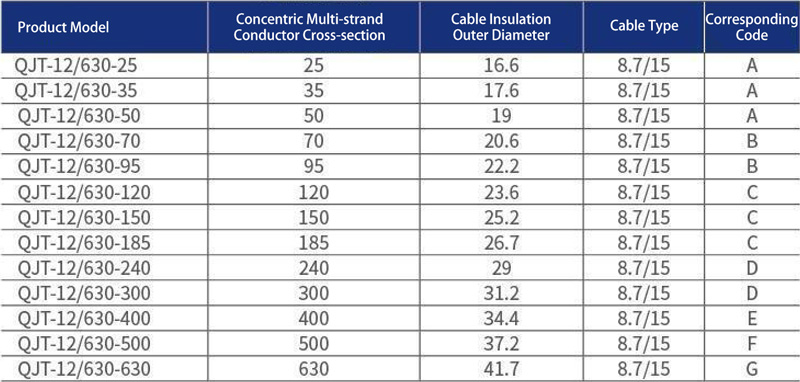

12kV Cable Model Configuration Table
