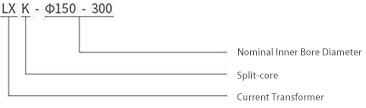

Model Code Explanation

Technical Parameters

1. Load power factor: cosφ = 0.8 (lagging);

2. Rated frequency: 50 or 60Hz;

3. Pollution class: Class II;

4. Ambient temperature: Minimum -5°C, maximum 40°C, with the daily average temperature not exceeding 30°C;

5. Altitude: ≤ 1000 meters;

6. Product standards: GB/T 20840.1, GB/T 20840.2.

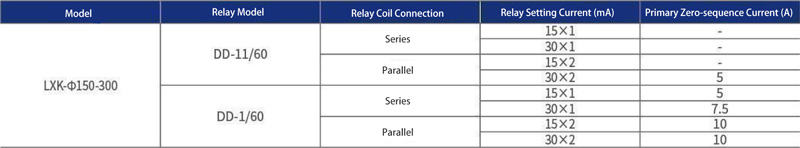

Technical Parameter Table

Note: Special requirements can be negotiated with our company.

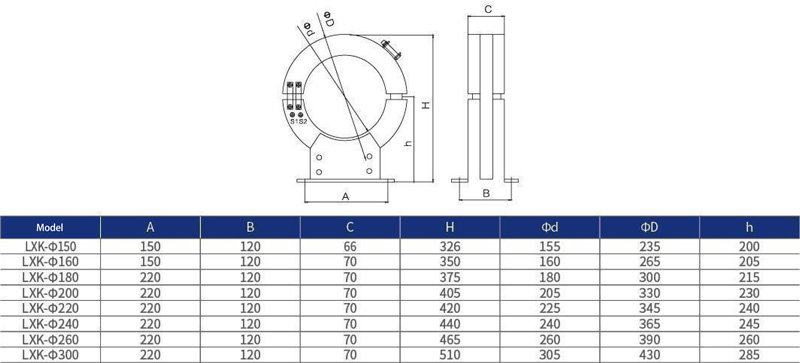

Outline and Installation Dimensions
