Product Profile

The 24kV Outdoor Embedded Pole is designed and manufactured in compliance with the technical specifications for State Grid primary-secondary fusion equipment, and meets the requirements of T/CES 018-2018 Technical Specifications for 10kV and 20kV AC Sensors in Distribution Networks. It integrates phase-sequence and zero-sequence voltage, phase-sequence and zero-sequence current, and voltage-taking integrated AC sensors. The point-taking sensors and voltage/current point-taking devices are built inside the product, which can be directly assembled with a circuit breaker to form a primary-secondary fusion intelligent circuit breaker. It features simple installation, low power consumption, high accuracy, and stable measurement.

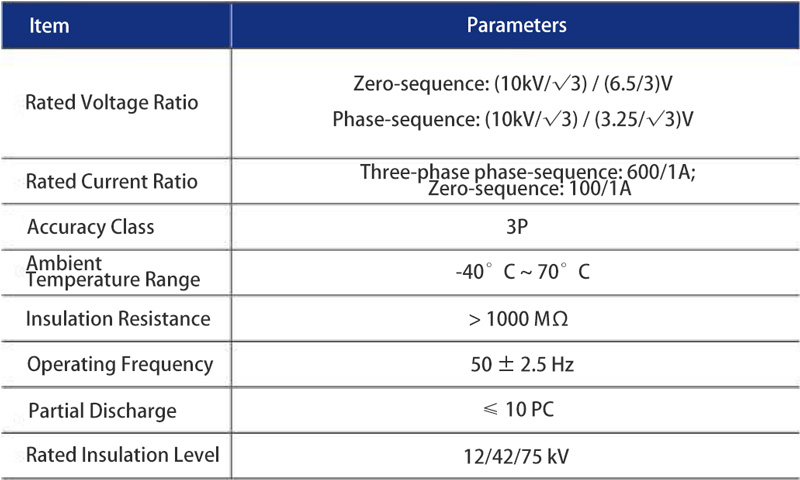

Technical Parameters

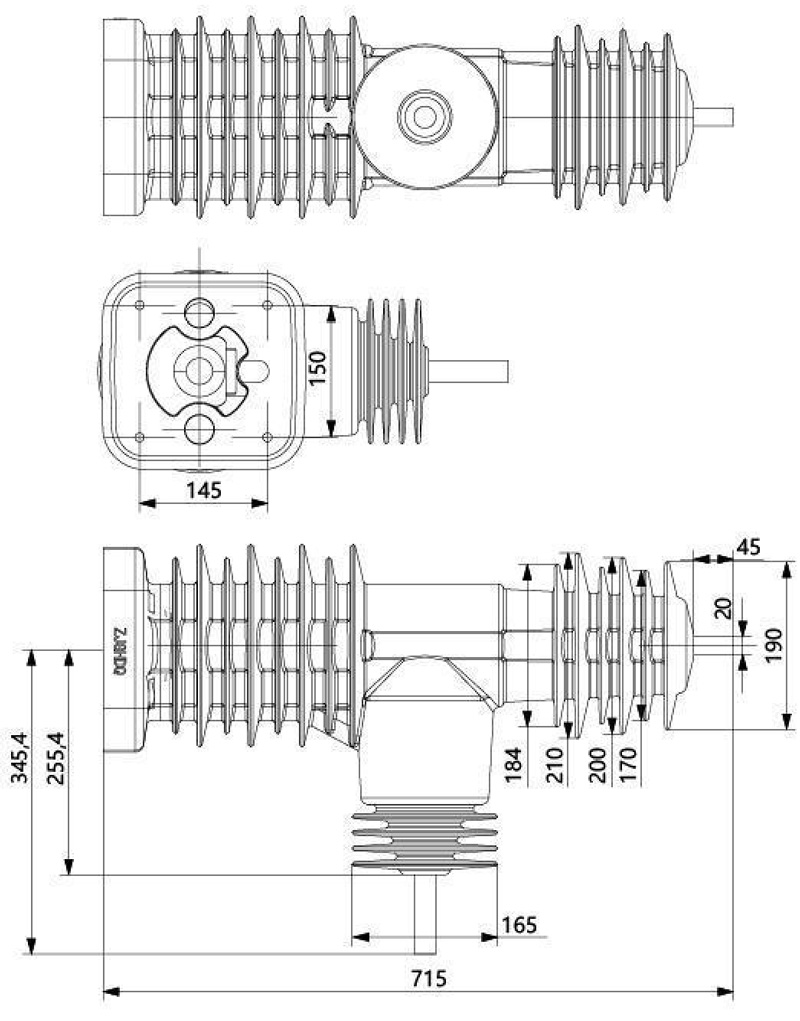

Overall Dimensions
