Ceneral

JN15-12 series indoor high-pressure grounding switch its performance accords with GB1985-89 《exchange high-pressure isolation and grounding switch》 and IEC129 requirements, suitable for 12kv and below the ac 50Hz in power system, It is the high-voltage switchgear supporting the use, as grounding protection uses.

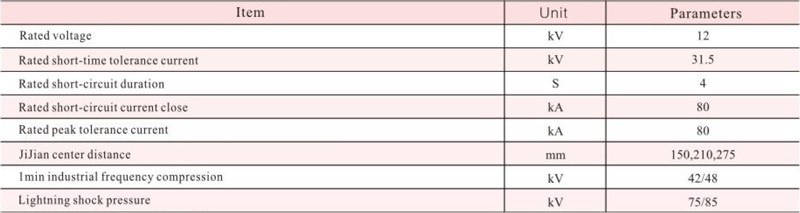

Main technical parameter

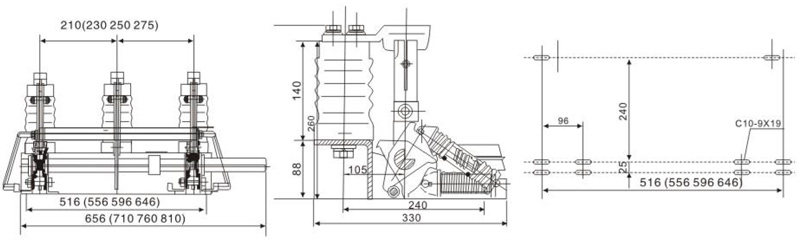

Outline mounting dimension
