Ceneral

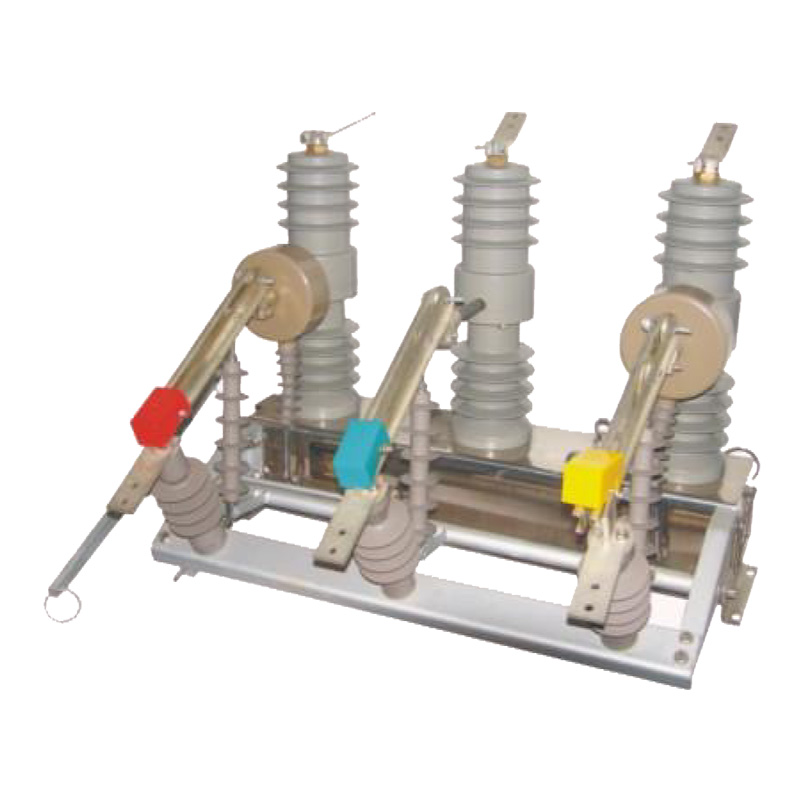

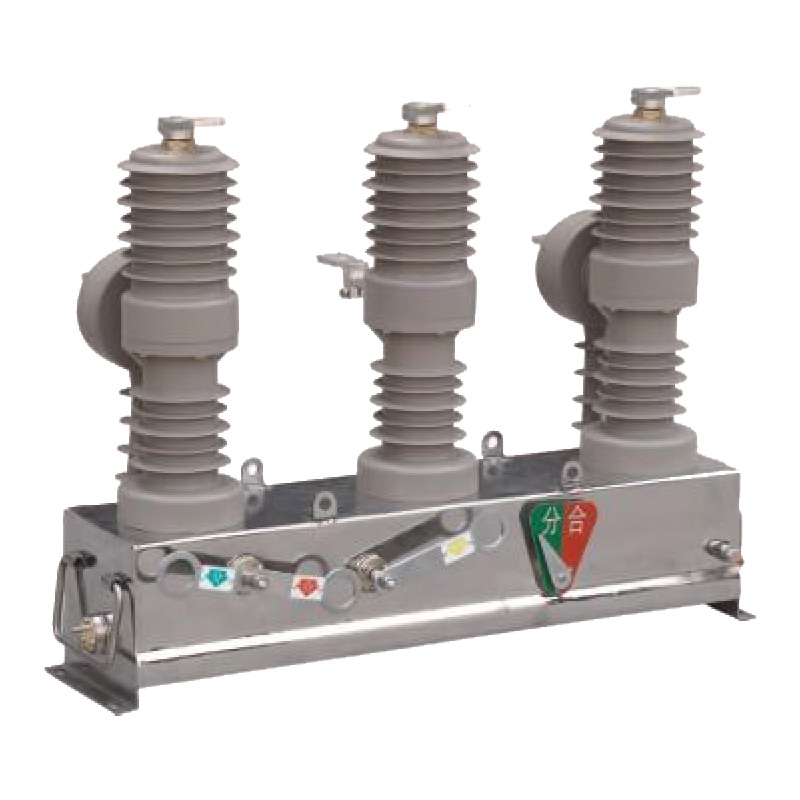

ZW32-12 series outdoor high volt vacuum circuit breaker is one kind of outdoor high volt distributing equipment of three-phase AC 50Hz and 12kv, to be used to switch on and off load current, overload current and short current inside power system, this product is especially suitable for certain place with frequently operation, the circuit breaker could be divided into two kinds according to operating mechanism such as ZW32-12/T (spring operating mechanism) and ZW32-12/M model (permanent magnetism operating mechanism).

Breaker combining controller could form recloser, for realizing remote control, remote test, remote signaling and remote regulation etc.

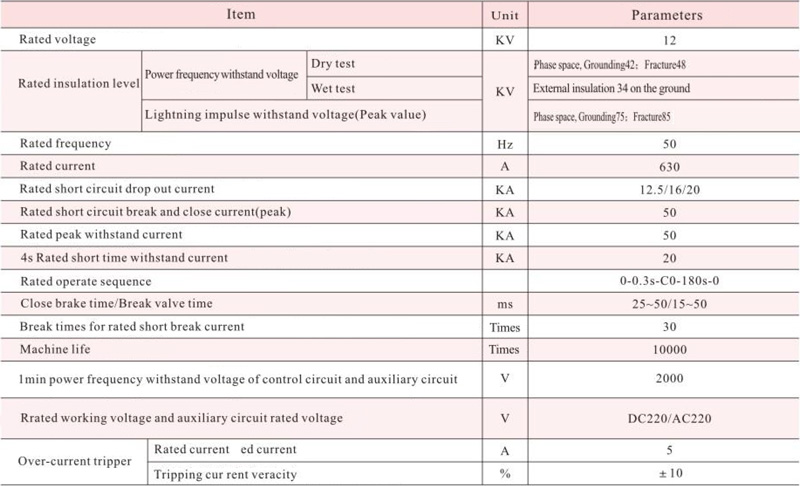

Main technical parameter

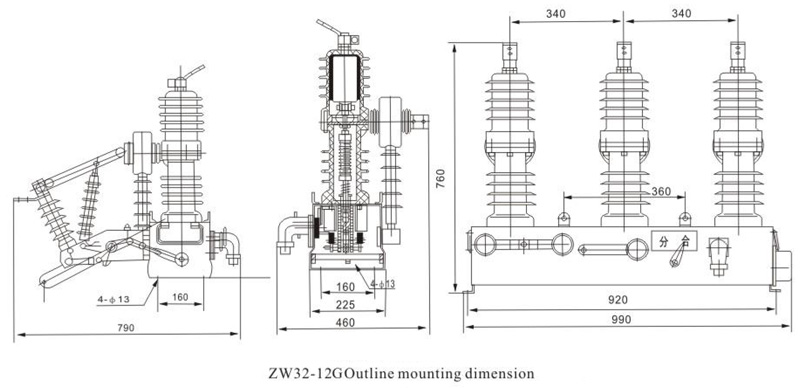

Outlinemounting dimension
